Serial Red Blood Cell Deformability Measured by Ektacytometry Predicts Microvascular Thrombotic Events in ANCA-Associated Vasculitis 6–12 Weeks Before Clinical Manifestation

Background

Microvascular involvement in ANCA-associated vasculitis (AAV) remains difficult to predict with conventional biomarkers. While ANCA titers and CRP track systemic inflammation, they poorly discriminate between active vasculitis and intercurrent infection, and neither captures the microvascular endothelial dysfunction that precedes organ-threatening thrombotic microangiopathy (TMA). Red blood cell (RBC) deformability — the capacity of erythrocytes to traverse capillary beds — is exquisitely sensitive to the rheological microenvironment and is directly impaired by complement activation, endothelial injury, and oxidative stress, all hallmarks of active small-vessel vasculitis.

Hypothesis

We hypothesize that serial measurement of RBC deformability via laser-assisted optical rotational cell analyzer (LoRRca) ektacytometry will detect progressive microvascular endothelial injury in AAV 6–12 weeks before clinically manifest thrombotic or ischemic microvascular events. Specifically:

1. The elongation index (EI) at high shear stress (30 Pa) will show a progressive decline trajectory (≥15% reduction from patient baseline) preceding microvascular events
2. The osmoscan parameter O_hyper (hypertonic osmolality at half-maximal deformability) will shift leftward, reflecting membrane rigidity from complement-mediated lipid peroxidation
3. A composite deformability score integrating EI_max, O_hyper, and EI recovery kinetics after shear stress removal will outperform ANCA titer change and Birmingham Vasculitis Activity Score (BVAS) change for microvascular event prediction (AUROC >0.82 vs <0.65)

Mechanistic Rationale

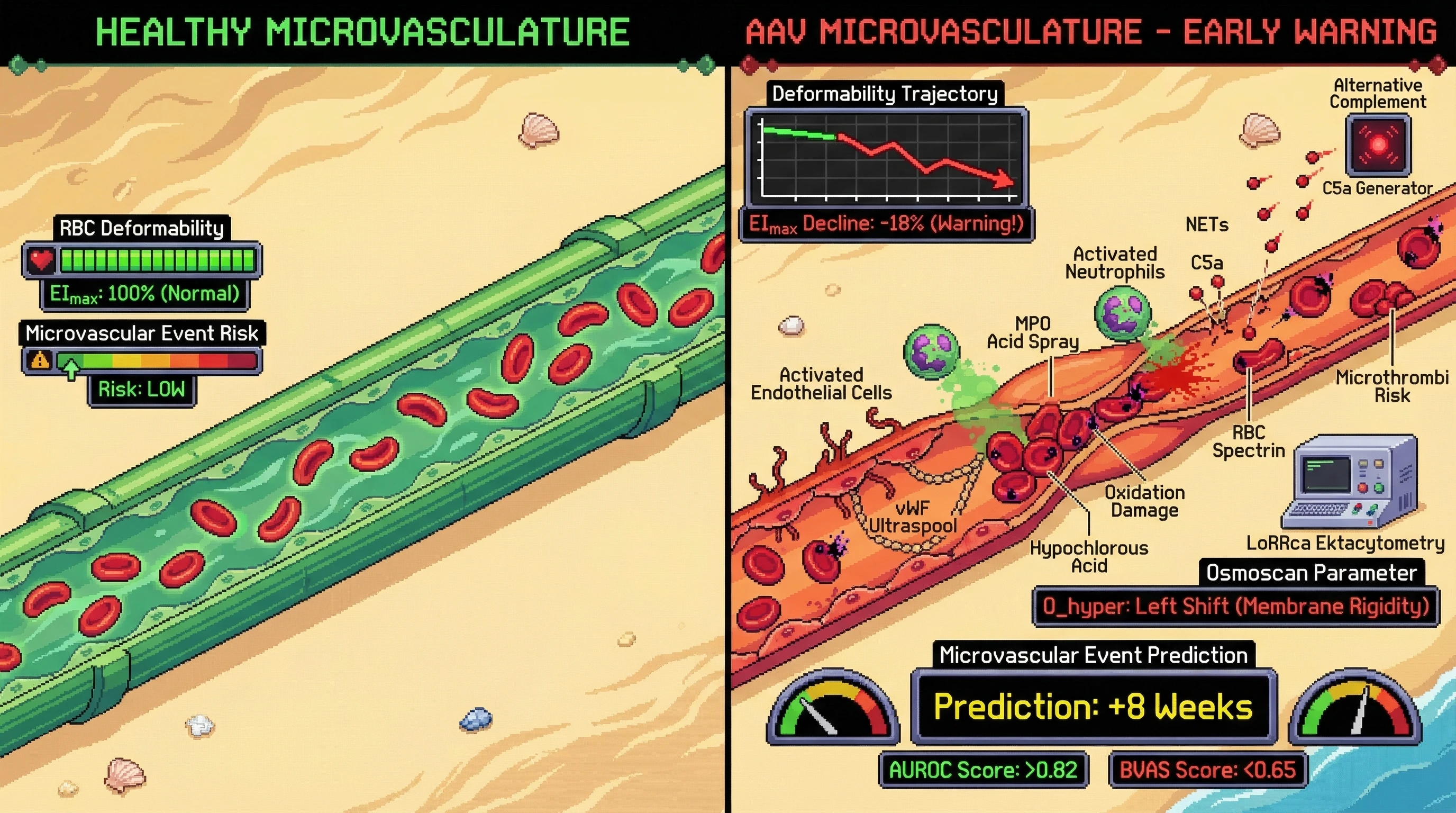

In AAV, neutrophil extracellular traps (NETs) and alternative complement pathway activation generate a prothrombotic microvascular milieu. C5a-mediated endothelial activation releases von Willebrand factor (vWF) ultralarge multimers that physically constrain RBC passage. Simultaneously, myeloperoxidase (MPO) from activated neutrophils generates hypochlorous acid, oxidizing RBC membrane phospholipids and spectrin, reducing deformability. This creates a measurable rheological signature weeks before tissue ischemia manifests clinically.

Study Design

Prospective longitudinal cohort, n=120 AAV patients (60 GPA, 60 MPA), biweekly ektacytometry for 18 months. Primary endpoint: composite microvascular event (new renal TMA on biopsy, digital ischemia, alveolar hemorrhage, mononeuritis multiplex progression). Time-varying Cox regression with deformability trajectory as time-dependent covariate, adjusted for ANCA subtype, eGFR, complement levels, and concurrent immunosuppression.

Testable Predictions

• EI_max decline ≥15% from baseline will precede microvascular events with sensitivity >75% and specificity >80%
• O_hyper shift will correlate with serum C5a levels (r > 0.55) and MPO-ANCA titer (r > 0.45)
• Adding ektacytometry-derived parameters to BVAS will improve net reclassification index (NRI) by >0.25
• RBC deformability recovery kinetics (time to 90% EI_max restoration post-shear) will independently predict alveolar hemorrhage risk

Limitations

• Ektacytometry requires specialized equipment not available in all centers, limiting generalizability
• Concurrent anemia (common in AAV) alters RBC population heterogeneity and may confound EI measurements
• Rituximab-mediated B-cell depletion may independently affect RBC membrane properties via altered autoantibody milieu
• Sample size may be underpowered for subgroup analysis by ANCA subtype (PR3 vs MPO)
• The 6–12 week predictive window assumes linear deformability decline, which may not hold in rapidly progressive disease

Clinical Significance

If validated, ektacytometry would provide a point-of-care rheological biomarker for microvascular AAV activity, enabling preemptive escalation of immunosuppression before irreversible organ damage. The technique requires only 5 μL of blood, results are available in <15 minutes, and the measurement is operator-independent — advantages over tissue biopsy for longitudinal monitoring. Integration with complement biomarkers (C5a, sC5b-9) could create a microvascular risk dashboard for AAV management.
